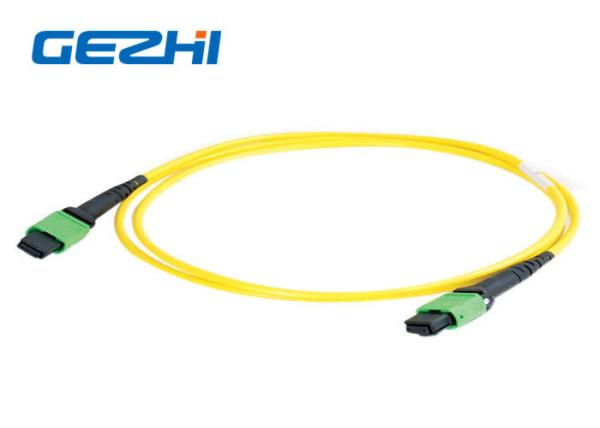

Single mode 12 Fiber Optic Patch Cord , MPO Patch Cord Truck Cable Jumper
| Connector: | MPO Female | Fiber Type: | Single Mode G652D |
|---|---|---|---|
| Cable Type: | Round Indoor Cable | Fiber Count: | 12 Fibers |
| Cable Color: | Yellow | Cable Jacket: | LSZH |
| Insertion Loss: | <0.35dB | Max Insertion Loss: | <0.7dB |
| Return Loss: | >60dB | Wavelength: | 1310nm 1550nm |
Single mode 12 Fiber Optic MPO Cable, MPO Patch Cord Truck Cable Jumper
Description
MPO fiber optic patch cord is composed of high precision connectors and cables, suitable
for telecommunication system high density network connectivity solutions. The outside of the
connector is precise plastic parts, including push and pull plug locking mechanism, precise
PIN needle to ensure accurate matching. Generally use 4 core, 8 core, 12 core optical fiber
ribbon cable. MPO optical fiber jumper has high accuracy ferrule and high quality optical fiber
cable, carefully manufactured by our company's unique grinding technology, the ferrule end
face have both type: PC and APC. It also has high precise MPO adapter, low insertion loss,
which ensures long-term optical stability and mechanical properties.
Associated Standards
Features
Applications
Specification
| Item | SM | MM |
| Cable OD | MAX 5.5mm | |
| Fiber Diameter | 9/125um | 62.5/125um 50/125um |
| Insertion Loss | APC＜0.7 dB | PC＜0.7 dB |
| Return Loss | APC＞60 dB | PC＞25 dB |
| Insert-pull test | (500times)＜0.5 dB | |
| Interchanging capability | ＜0.5 dB | |
| Operating temperature | ﹣40℃～＋80℃ | |
|
|
