| Brand Name : | GEZHI or OEM |
| Model Number : | GZ-Patch Cord |
| Certification : | CE/FCC/RoHS/TUV/UL |
| Price : | Get Latest Price |
| Supply Ability : | 100000pcs per week |
| Delivery Time : | 1~3working days |

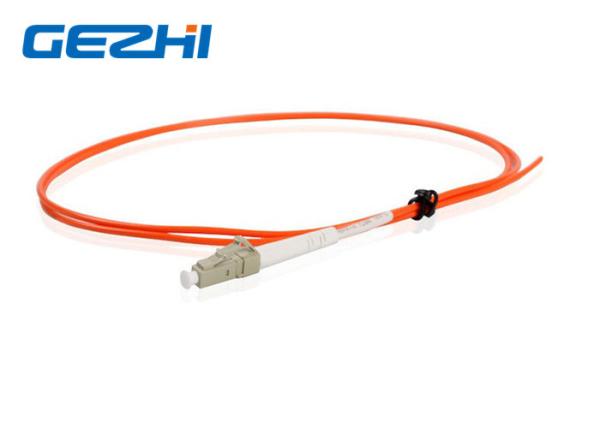

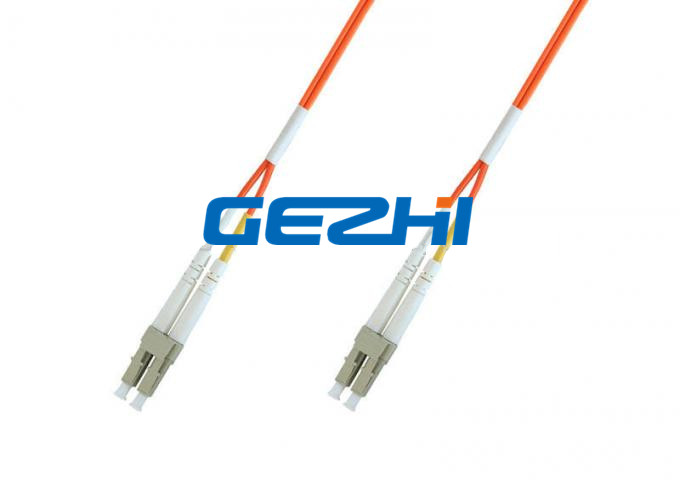

The LC patchcord is fully compatible with the original LC family of single-mode and multimode Pigtails,
adapters and associated components. The pachcord features a compact, pull-proof design with RJ-45 style interface, and features a one-piece
molded housing with internal strength member, for significantly improved 90 side-pull performance
under Telcordia GR-326-CORE testing. It is manufactured using a ruggedized material that results
in a latch trigger up to four times stronger than average.
Features
Application
Specification
| Item | Single mode (nomomodo) | Multimode (Multimodo) |
| Wavelength | 1310&1550nm | 850&1300nm |
| Fiber type | 9/125um | 62.5/125um,50/125um,50/125um OM3,50/125um OM4 |
| Connector type | SC ST FC LC | |
| Insertion loss on average | ≤0.3dB | ≤0.3dB |
| Max. insertion loss | ≤0.5dB | ≤0.5dB |
| Return loss | UPC≥55dB;APC≥65dB | ≥20dB |
| Operating temperature | -40~+75℃ | |
| Storage temperature | -40~+85℃ | |
Ordering Information
LC / PC MM 50/125 SIMPLEX 0.9mm –1M LSZH
① ② ③ ④ ⑤ ⑥ ⑦
① Connector type: FC, SC, LC, ST
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or
62.5/125um), OM3 10Gigabit, OM4
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.4mm, Ф2.0mm, Ф1.8mm, Ф1.6mm, Ф0.9mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH
|
|
