Description

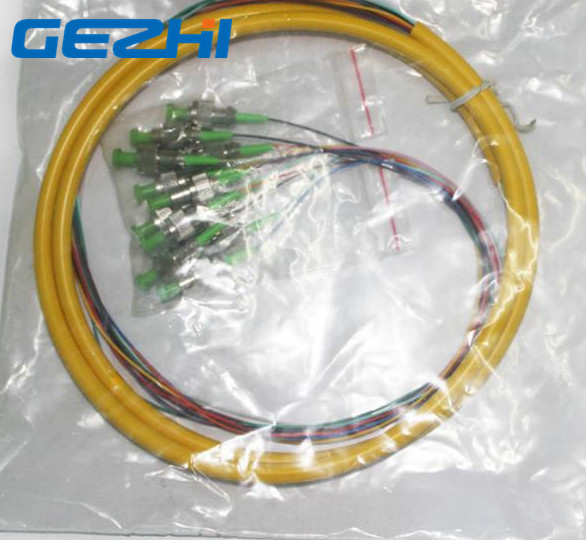

FC Bunchy pigtail, also called FC fiber optic bundle pigtail, only one end has connector FC, the other end

is a fiber cable which is cut off, it is connected with the other fiber core by fusion, often appear

in the optical fiber terminal box to connect the cable and terminal equipment.

It mainly have two types: single mode bunchy pigtails or multi-mode pigtails.

FC connector outer is metal strength,most use in ODF distribution frame of Telecom network,

it has a nut to fix on the adapter,can be stable and dust-proof, but installation time will be

a little longer. FC connector, SC connector, connect GBIC fiber optical transceivers modules,

its housing is rectangular, use bolt plug type to fix,no need rotate, most use in router or switch.

Features

1. Fiber transmission active connection
2. Low insertion loss, high return loss
3. Good changeability and repeatability
4. Mostly used inside frame connection, simple, convenient and economical
5. Easy to install, small size, large capacity.
6. Jumper diameters: 2.0mm, 0.9mm.
7. Optical Indicators:
8. PC insertion Loss ≤ 0.2dB ; reflection attenuation ≥ 50dB;
9. APC insertion loss ≤ 0.2dB ; Return Loss ≥ 60dB
10. Fiber count: 4 core 6 core 8 core, 10 core, 12 core.
11. Fan out fibers have a special tube protection from twisting off or injury,
12. and good bending properties.
13. Can use connectors like: FC / PC, FC / APC, SC / PC, SC / APC, ST / PC, etc

Optical Characteristics

Order information

FC/APC fiber optic connector

1. Polish method: PC UPC APC
2. Fiber count: 2core, 4core, 6core, 8core, 12 core, etc
3. Fiber type: G652D, G657A, G657A2, G655
4. Cable type: OS1 SM, MM OM1, OM2, OM3 10G, OM4,etc
5. Cable length: 1meter, 2meter, 3meter,.... Etc
6. Package: Blister box, plastic bag, paper bubble bag
