    Multi - Fiber 12 Core Optical Fiber Components , 1 /1.5 Meter FC Ribbon Pigtail

    Ask Lasest Price
    Brand Name : GEZHI or OEM
    Model Number : GZ-Patch Cord
    Certification : CE/FCC/RoHS/TUV/UL
    Price : Get Latest Price
    Supply Ability : 100000pcs per week
    Delivery Time : 1~3working days
    • Product Details
    • Company Profile

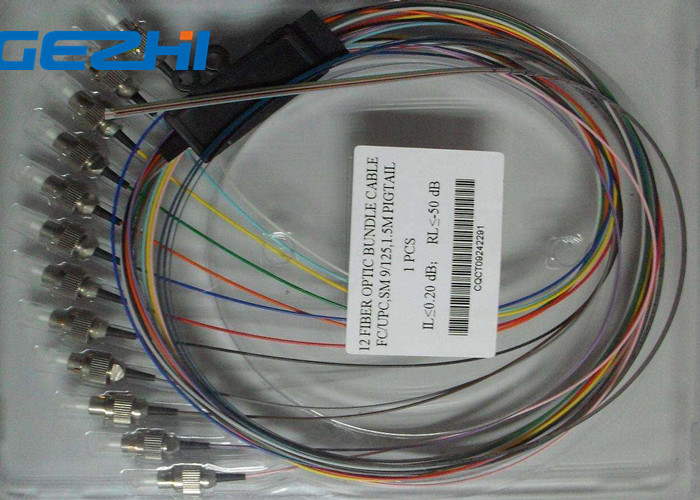

    Multi - Fiber 12 Core Optical Fiber Components , 1 /1.5 Meter FC Ribbon Pigtail


    Multi - fiber 12 Core Fiber Optic Pigtail , 1Meter or 1.5 m FC Ribbon Pigtail


    Separate multi-core cable (4 core, 6 core, 8 core, 12 core) fan-out( or bundle)

    with connectors,suitable for convenient indoor connectivity and

    distribution frames (ODF) intensive installation.


    Features

    1. Ribbon fiber straightly separate into to single-core wiring pigtails.
    2. Mostly used in frame connection, simple, convenient and economical
    3. Easy to install, small size, large capacity.
    4. Jumper types: 2.0mm, 0.9mm.
    5. Indicators PC : Insertion Loss ≤ 0.2dB ; reflection attenuation ≥ 50dB;
    6. APC insertion loss ≤ 0.2dB ; Return Loss ≥ 60dB
    7. Fiber: 4 core 6 core 8 core, 10 core, 12 core.
    8. Fan out fiber have a special casing protection from twisting off or injury, and good bending properties.
    9. With FC / PC, FC / APC, SC / PC, SC / APC, ST / PC connectors

    Competitive advantage:

    1. 2core,4core,6core,8core,12core... available

    1. High quality, fast delivery
    2. Customer OEM LABEL or package box available
    3. Sample available

    Specification (for single mode)


    ParameterPCUPCAPC
    Insertion loss≤0.30dB
    Repeat-ability≤0.10dB
    Interchangeability≤0.10dB
    Return loss≥50dB≥55dB≥60dB
    Mating times≥500
    Operating temperature-40- +75°C
    Fiber typeG652.G655
    Fiber length (M)3.5.7.10 (in terms of customer demands)

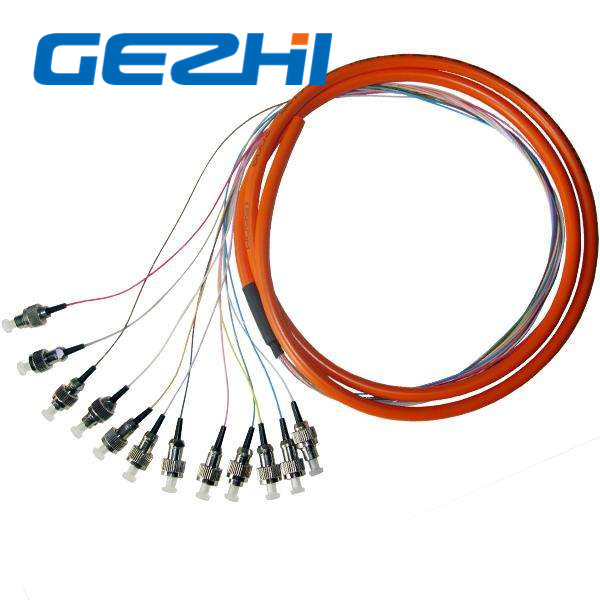

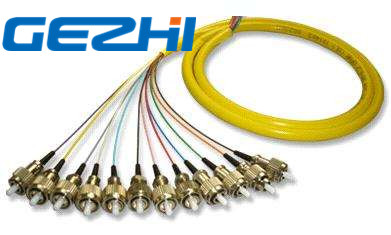

    More product show:
