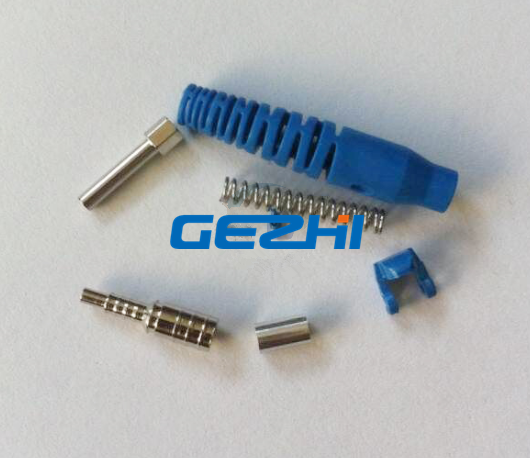

Lx 5 - LC Patch Cord Accessories Cable Simplex Single Mode 2.0mm High RL Low IL

Gezhi Photonics Co.,Ltd
Contact Now
    Buy cheap Lx 5 - LC Patch Cord Accessories Cable Simplex Single Mode 2.0mm High RL Low IL from wholesalers

    Buy cheap Lx 5 - LC Patch Cord Accessories Cable Simplex Single Mode 2.0mm High RL Low IL from wholesalers
    • Buy cheap Lx 5 - LC Patch Cord Accessories Cable Simplex Single Mode 2.0mm High RL Low IL from wholesalers
    • Buy cheap Lx 5 - LC Patch Cord Accessories Cable Simplex Single Mode 2.0mm High RL Low IL from wholesalers
    • Buy cheap Lx 5 - LC Patch Cord Accessories Cable Simplex Single Mode 2.0mm High RL Low IL from wholesalers

    Lx 5 - LC Patch Cord Accessories Cable Simplex Single Mode 2.0mm High RL Low IL

    Ask Lasest Price
    Brand Name : GEZHI or OEM
    Model Number : GZ-Patch Cord
    Certification : CE/FCC/RoHS/TUV/UL
    Price : Get Latest Price
    Supply Ability : 100000pcs per week
    Delivery Time : 1~3working days
    • Product Details
    • Company Profile

    Lx 5 - LC Patch Cord Accessories Cable Simplex Single Mode 2.0mm High RL Low IL

    Lx.5 - LC Fiber Optic Patch Cord Cable Simplex Single Mode 2.0mm High RL , Low IL

    Features

    • PC/UPC/APC end face
    • High RL,Low IL
    • High stability and reliability
    • 0.9,2.0,3.0mm cable diameter optional

    Technical parameters

    1. Conforms to IEC-61754-20 standard
    2. Conforms to Telcordia-GR-326-CORE standard
    3. Conforms to ROHS standard
    4. Conforms to EN186270 standard

    Specification


    Fiber modeSMMM
    Connector typeLx.5-LC
    diameter0.9mm,2.0mm,3.0mm
    End facePCUPCAPCPC
    IL≤ 0.30≤ 0.30≤ 0.30≤ 0.30
    RL≥ 45≥ 50≥ 60≥ 35
    Interchangeability0.2dB
    Repeat-ability0.2dB
    Working temperature-40~+75℃
    Storage temperature-40~+85℃
    Working wavelength1310/1550nm850nm

    Application

    1. Fiber Optic Communication System
    2. Fiber Optic Test instruments
    3. CATV network
    4. LAN/LOCAL network


    Tag: fiber optic patch cable,fiber optic jumper
