| Brand Name : | GEZHI or OEM |
| Model Number : | GZ-Patch Cord |
| Certification : | CE/FCC/RoHS/TUV/UL |
| Price : | Get Latest Price |
| Supply Ability : | 100000pcs per week |
| Delivery Time : | 1~3working days |

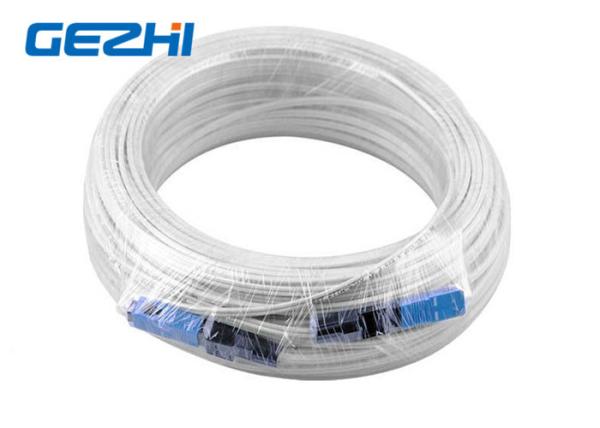

Access network fiber optic drop cable (indoor wiring) is to put fiber optic unit in the center, on both sides is
two parallel nonmetallic reinforcing element (FRP) or metallic strength member,finally extrusion black or
color polyvinyl chloride (PVC) or low smoke halogen-free flame retardant (LSZH) sheath.
Features
Application
Specification
| Item | SC FC ST LC drop cable PATCH CORD | ||
| IL(dB) | ≤0.2 | Max IL(dB) | ≤0.3 |
| Working temperature(°C) | -40~+80 | Temperature cycle(°C) | -40~+75 |
| Storage temperature(°C) | -40~+85 | Interchangeability (dB) | ≤0.2 |
| Plug times | 1000 times | Repeat ability(dB) | ≤0.1 |
| RL (dB) | ≥45 ≥50 ≥60 | Immersion | Temperature 43°C, PH5.5 for 7days |
Order information
FC-XXX-XX-XXX-XXX-XX
1 - 2 - 3 4 - 5 6 - 7
| FC | Connector type | Fiber count | Cable type | Strength member | Fiber type | Cable color | Cable Length |
| FH=ftth | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
Pc=patch cord | SCU=SC/UPC SCA=SC/APC LCU=LC/UPC .... | 01=1core 02=2core 04=4core .... | F8=Figure 8 SF=self-supporting | F=FRP S=steel | 5D=G.652D A1=G.657A1 A2=G.657A2 | W=white B=Black Y=yellow | 01=1m 02=2m ... 10=10m ... |

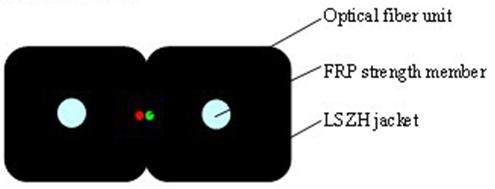

Structure
|
|
