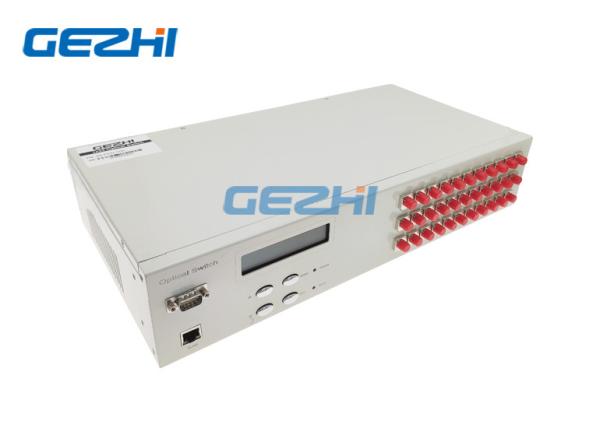

Fiber Optic SW 1x32 Switch
The Rack Mount 1X32 Optical Switches allow the automated and repeatable connection of one common fiber to 32 number of output or input fibers. These all-optical switches are bi-directional and can be used in either the 1x32 or 32x1 direction.Rack-Mounted Optical Switches can be manually selected from front panel or control via RS232 port, Ethernet port.This Fiber optical switch is available in any 1xN size up to 1x128.
| Features | Applications |
|
|
Ordering Informations
| N | A | B | C | D | E | F |
| Channel | Package | Mode | Wavelength | Voltage Type | Fiber type | Connector |
| 1~32 32~64 64~128 128~256 | 1U 2U 3U 4U 6U 8U X: Other | S:SM M:MM X: Other | 85: 850nm 13: 1310nm 15: 1550nm 13/15:1310/1550nm X: Other | AC: 85-264V DC: 36-72V AC/ DC: 220V&48V | 5:50/125 6:62.5/125 9: 9/125 X: Other | FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC STP: ST/PC LP: LC/PC LA: LC/APC X: Other |
Specifications
| Parameters | GZ-FSW-1X32 | ||
| Operating wavelength | nm | 850±40 / 1300±40 | 1260~1650 |
| Test Wavelength | nm | 850/1300 | 1310/1550 |
| Insertion loss | dB | Typ:0.8 Max:1.0 | |
| Return loss | dB | SM≥55 MM≥30 | |
| Crosstalk | dB | ≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.05 | |
| Lifetime | times | ≥107 | |
| Transmission power | mW | ≤500 | |
| Switch time | ms | ≤10(Sequence switch time of adjacent channel) | |
| Operating temperature | ℃ | -10～+60 | |
| Storage temperature | ℃ | -40～+80 | |
| Relative Humidity | % | 5 ~ 95 | |
| Supervision interface | Ethernet Interface and RS232( or RS-485 ) | ||
| Power supply | V | AC 85-264V,50/60Hz OR DC(36-72)V | |
| Dimensions | mm | 1U L483XW200XH44 (Up to 20 channel) customization is available. | |
| 2U L483XW303XH89 (Up to 64 channel) customization is available. | |||
| 3U L483XW303XH139 (Up to 128 channel) customization is available. | |||
| 4U L483XW303XH177 (Up to 256 channel) customization is available. | |||
|
|
