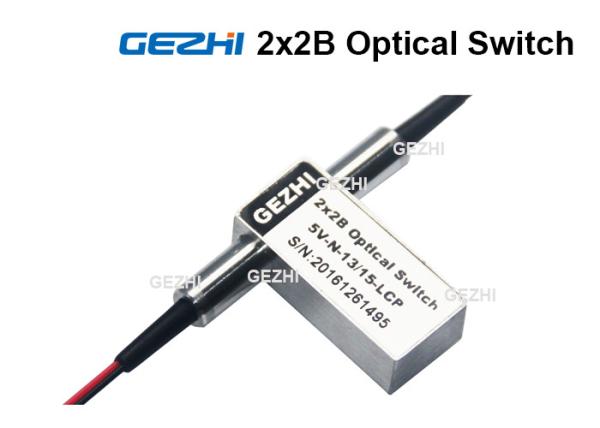

GEZHI Phothonics 2x2 MM Bypass Mechanical Fiber Optic Switch (2X2B
MM Optical Switch) connects optical channels by redirecting an
incoming optical signal into a selected output fiber.
All GEZHI Photonics’ 2x2 MM Bypass Mechanical Fiber Optic Switch
(2X2B MM Optical Switch) support all wavelength at 850nm, it offers
ultra-high reliability, low insertion loss, fast switching speed as
well as bi-directional performance. The optical switches are widely
used for Optical Network, Protection, Transmitter and Receiver
Protection,Network Test System and Instrumentations.
Features
Specification
Parameters | GZ-FSW-2×2B | ||
| Wavelength Range | nm | 850±40/1300±40 | 1260～1650 |
| Operating avelength | nm | 850/1300 | 1310/1490/1550/1625/1650 |
| Insertion Loss | dB | Typ:0.8 Max:1.2 | Typ:0.6 Max:0.8 |
| Return Loss | dB | MM≥30 SM≥50 | |
| Crosstalk | dB | MM≥35 SM≥55 | |
| PDL | dB | ≤0.05 | |
| WDL | dB | ≤0.25 | |
| TDL | dB | ≤0.25 | |
| Repeatability | dB | ≤±0.02 | |
| Power Supply | v | 3.0 or 5.0 | |
| Lifetime | times | ≥107 | |
| Switch Time | ms | ≤8 | |
| Transmission Power | mW | ≤500 | |
| Operating Temperature | ℃ | -20～+70 | |
| Storage Temperature | ℃ | -40～+85 | |
| Weight | g | 16 | |
| Dimension | mm | (L)27.0×(W)12.0×(H)8.2 customization is available. | |
Pins
| Parameters | Pins | Electric Drive | Status Sensor | ||||||
| 2×2B | Optical Path | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 |
| Non-latching | P1-P3 | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P4,P2-P3 | V+ | -- | -- | GND | Open | Close | Close | Open | |
| latching | P1-P3 | -- | -- | GND | V+ | Close | Open | Open | Close |
| P1-P4 P2-P3 | V+ | GND | -- | -- | Open | Close | Close | Open | |
Optical Route
| Status One | Status Two |
|
|
Order Information
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
S=SM | 85=850nm | 3=3V | L=Latching | 5=50/125 | 25=250um | 1=1m | 0=None |
|
|
