    2x2B Opto - Mechanical Fiber Optical Switches Optical Bypass Switch

    Optical Bypass Switch 2x2B Opto-Mechanical Fiber Optical Switches

    The 2x2B Opto-Mechanical Bi-directional Fiber Optic Switch connects optical channels by redirecting 2 incoming optical signals into 2 output fibers.
    GEZHI Photonics offers most affordable high performance Opto-Mechanical Fiber Optic Switches. Our Mechanical Fiber Optic Switches are tested in-house prior to shipment to guarantee that they will arrive in perfect physical and working condition. Currently configurations includes 1x1, 1x2, 1x4, 1x8, 2x2, 2x2A, 2x2B, and 2x2BA as well as Dual 2x2 and Dual 2x2 Bypass configurations for single mode or multimode fibers. For more information about Opto-mechanical fiber optic switches, please e-email sales@gezhiphotonics.com .
    Features
    • Compact design, Miniature size
    • Short switching time
    • Bi-directionalLow optical distortions
    • Low cross talk, Low Insertion Loss
    • Wide operating wavelength Range
    • Seam-seal package
    • Highly Stable & Reliable
    • Epoxy-free on Optical Path
    • Single mode or Multimode optional
    • Fail-Safe Latching and Non-latching
    Applications
    • Network switching
    • R&D in Laboratory
    • Fiber sensor
    • Channel blocking
    • System monitoring
    • Channel Blocking
    • Module and System Integration
    • Metropolitan Area Network
    • Network protection and restoration
    • Instrumentation, testing, and measurement
    Specifications
    ParametersMultimodeSinglemodeUnit
    Wavelength Range650 ~ 13101260 ~ 1670nm
    Testing Wavelength650/780/850/980/1064/13101310/1490/1550/1625/1650nm
    Insertion LossTyp: 0.6, Max: 1.0Typ: 0.5, Max: 0.8dB
    Return Loss≥ 30≥ 50dB
    Crosstalk≥ 35≥ 50dB
    PDL≤ 0.05dB
    WDL≤ 0.25dB
    TDL≤ 0.25dB
    Repeatability≤ ±0.02dB
    Power supply3.0 or 5.0v
    Lifetime≥ 107Cycle
    Switch Time≤ 8ms
    Transmission Power≤ 500mW
    Operation Temperature-40 ~ +85
    Storage Temperature-40 ~ +85
    Weight16g
    Dimension(L)27 x (W)12.6 x (H)8.5(±0.2)mm
    Note:
    1. All parameters are for device without connectors.
    2.Special specifications can be customized according to customer requirements.

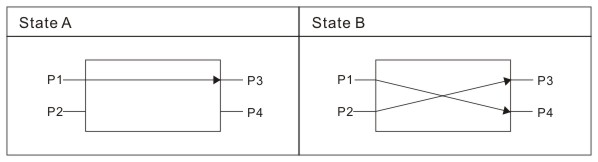

    Optical Route

    Fs OSW-2x2-1.jpg

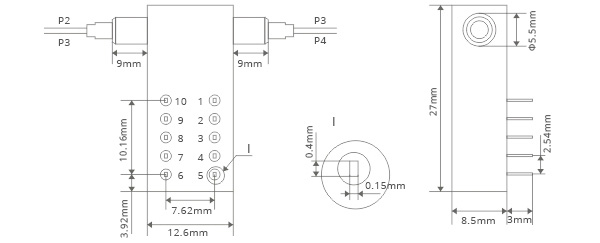

    Mechanical Dimensions (Unit: mm)

    Fs OSW-2x2B.jpg

    Electrical Driving Requirements
    Optical PathElectric DriveSensor Status
    2x2B156103-4,7-82-3,8-9
    LatchingP1-P3N/AN/AGND+5VOPENCLOSE
    P1-P4 / P2-P3+5VGNDN/AN/ACLOSEOPEN
    Non- LatchingP1-P3N/AN/AN/AN/AOPENCLOSE
    P1-P4 / P2-P3+5VN/AN/AGNDCLOSEOPEN
    Functional Diagram
    SpecificationVoltageCurrentResistor
    5V Latching4.5~5.536~44mA125Ω
    5V Non-Latching4.5~5.526~32mA175Ω
    3V Latching2.7~3.354~66mA50Ω
    3V Non-Latching2.7~3.339~47mA70Ω
    Order information: FSW-2x2B-A-B-C-D-E-F-G
    GEZHI Photonics provides customized design optical switches to meet special control and applications. Also, GEZHI Photonics offers modular assemblies that integrate other components to form a full function modules or subsystem. For details, please contact GEZHI Photonics at sales@gezhiphotonics.com .

    Question:
    1. Number of switching ports: 1, 2, 3, 4, 8, or 12.
    2. What wavelengths are you using?
    3. Which core/cladding size are you using?
    4. What type of connectors do you need?
    5. How long should the fibers be? What size jacketing?
    6. Are there any other special requirements?
    ABCDEFG
    ModeWavelengthVoltageControl ModelFiber DiameterFiber LengthConnector
    SM: 9/125um85: 850nm3: 3VL: Latching25: 250um05: 0.5mOO: None
    M5: 50/125um13: 1310nm5: 5VN: Non-Latching90: 900um10: 1.0mFP: FC/PC
    M6: 62.5/125um14: 1490nmS: SpecialS: Special20: 2.0mm15: 1.5mFA: FC/APC
    S: Special15: 1550nm30: 3.0mmS: SpecialSP: SC/PC
    162: 1625nmS: SpecialSA: SC/APC
    165: 1650nmLP: LC/PC
    13/15: 1310/1550nmLA: LC/APC
    S: SpecialS: Special
    For example: FSW-2x2B-M6-13-5-L-S-15-FP
