Features Low Insertion Loss Wide Wavelength Range Low Crosstalk High Stability, High Reliability Epoxy-free on Optical Path Latching and Non-latching

Applications Metropolitan Area Network R&D in Laboratory System Monitor Configurable OADM Component testing Fiber sensor

Specifications

Parameters	Multimode	Singlemode	Unit
Wavelength Range	650 ～ 1310	1260 ～ 1670	nm
Testing Wavelength	650/780/850/980/1064/1310	1310/1490/1550/1625/1650	nm
Insertion Loss	Typ: 0.6, Max: 1.0	Typ: 0.5, Max: 0.8	dB
Return Loss	≥ 30	≥ 50	dB
Crosstalk	≥ 35	≥ 55	dB
PDL	≤ 0.05		dB
WDL	≤ 0.25		dB
TDL	≤ 0.25		dB
Repeatability	≤ ±0.02		dB
Power supply	3.0 or 5.0		v
Lifetime	≥ 107		Cycle
Switch Time	≤ 8		ms
Transmission Power	≤ 500		mW
Operation Temperature	-40 ～ +85		℃
Storage Temperature	-40 ～ +85		℃
Weight	16		g
Dimension	(L)27.0 × (W)12.6 × (H)8.0( ± 0.2mm) customization is available.		mm

Note:
1. All parameters are for device without connectors.
2.Special specifications can be customized according to customer requirements.

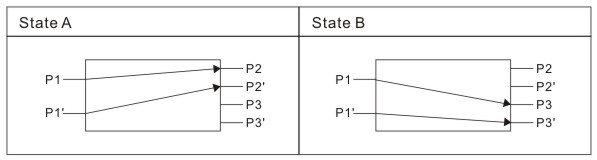

Optical Route

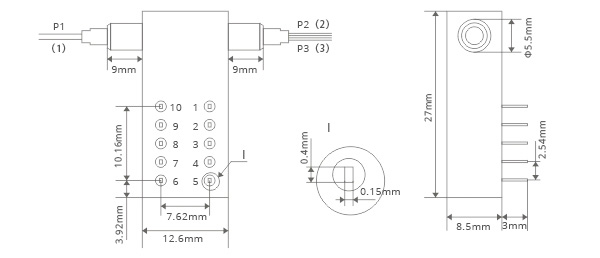

Mechanical Dimensions (Unit: mm)

Electrical Driving Requirements

Optical Path		Electric Drive				Sensor Status
D1×2		1	5	6	10	3－4,7－8	2－3,8－9
Latching	P1---P2,1-2	N/A	N/A	GND	+5V	OPEN	CLOSE
	P1---P3,1-3	+5V	GND	N/A	N/A	CLOSE	OPEN
Non- Latching	P1---P2,1-2	N/A	N/A	N/A	N/A	OPEN	CLOSE
	P1---P3,1-3	+5V	N/A	N/A	GND	CLOSE	OPEN

Functional Diagram

Specification	Voltage	Current	Resistor
5V Latching	4.5~5.5	36~44mA	125Ω
5V Non-Latching	4.5~5.5	26~32mA	175Ω
3V Latching	2.7~3.3	54~66mA	50Ω
3V Non-Latching	2.7~3.3	39~47mA	70Ω

Order information: FSW-D1x2－A－B－C－D－E－F－G

Order Information
