Gezhi Photonics Co.,Ltd SFP Fiber Module --- Your Dreamed Network!
10 Years
| Ask Lasest Price | |
| Brand Name : | Gezhi |
| Model Number : | GSB-0135--L1x(D) |
| Certification : | CE,RoHs,FCC |
| Price : | US $20.0 - 24.0 / Piece | 1 Piece/Pieces (Min. Order) |
| Payment Terms : | L/C, L/C |
| Supply Ability : | 130000 Piece/Pieces per Month |
| Delivery Time : | 5-8 work days |
Singlemode Optical Transceiver Module BIDI SFP 1.25g 1310/1550 10km
Features
Operation conditions
| Brand | Gezhi |
| P/N | GSB-0135--L1x(D) |
| Form Factor | SFP BIDI |
| Wavelength | 1310nm/1550nm |
| Distance | 10km |
| Data Rate | 1.25 Gb/s |
| Connector | LC |
| Power Supply | 3.3V |
| Maximum Power Consumption | 1.5W |
| Operating Temperature | 0°C to 70°C |
| DDM / DOM | YES |
| Warranty | 1 year |
| Certification | CE / FCC / RoHS / TUV / UL |

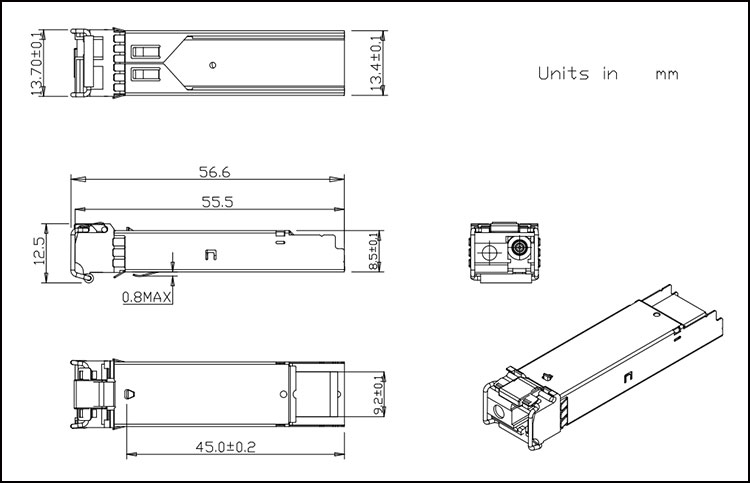

Dimensions of LC 1.25G 10km BiDi Module 1310nm/1550nm 1.25G BIDI
SFP 10km DDM
Every transceiver module is individually tested on full range of Gezhi equipments, walks through the testing challenges and 100%
compatibility.
1.25G BiDi Tx1310nm Rx1550nm LC 10km 1.25gbps Single Fiber BIDI SFP
Transceiver is compatible with the Small Form Factor Pluggable
Multi-Sourcing Agreement (MSA). The transceiver consists of five
sections: the LD driver, the limiting amplifier, the digital
diagnostic monitor, the DFB laser and the PIN photo-detector .The
module data link up to 10KM in 9/125um single mode fiber.
The optical output can be disabled by a TTL logic high-level input
of Tx Disable, and the system also can disable the module via I2C.
Tx Fault is provided to indicate that degradation of the laser.
Loss of signal (LOS) output is provided to indicate the loss of an
input optical signal of receiver or the link status with partner.
The system can also get the LOS (or Link)/Disable/Fault information
via I2C.
Application
Gezhi can provide the both ourselves forwarder and customer appointed
forwarder in the way of Air, Sea, Road. Which is carrier by FedEx,
DHL, UPS, TNT and EMS. Your items are probably shipped at the same
day (some transceivers can be delivered within 20 minutes). If we
have no stocks in our warehouse, the ship will be delayed for 1-2
days. DHL will take 2-4 business days for delivery and FedEx just
needs 1-3 business days.
Gezhi Photonics Co., Ltd is a professional manufacturer and provider in fiber Optical Products
which are widely applied in Datacom, Telecom, CATV, FTTX, fiber
Sensor etc.
Established in Nov 2011, GEZHI have two parts Products which meet full demand’ customer in Fiber Optics
Components. One parts is Active Components (main products include
SFP,SFP+,XFP,X2,Media converter,Fiber Siwtch,...) Another parts is Passive Components (mainly products is
(CWDM/DWDM,Athermal AWG Module,Optical Switch,Optical
Circulator/Isolator...)
|
|
