10GBase SR LC, 300 meters, 850 nm SFP+ transceiver.

GP-H185-SRC

10Gbps SFP+ Optical Transceiver, 300m Reach

Features:

♦ Optical interface compliant to IEEE 802.3ae

♦ Electrical interface compliant to SFF-8431

♦ Hot Pluggable

♦ 850nm VCSEL transmitter,PIN photo-detector

♦ Low power consumption

♦ Applicable for 300m MMF connection

♦ All-metal housing for superior EMI performance

♦ Advanced firmware allow customer system encryption information to be stored in transceiver

♦ Cost effective SFP+ solution, enables higher port densities and greater bandwidth

Application:

♦ 10GBASE-SR at 10.3125Gbps

♦ 10GBASE-SW at 9.953Gbps

♦ Other optical links

Description:

This 850 nm VCSEL 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over 50/125 μm or 62.5/125 μm multimode optical fiber .

The SFP+ SR module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved FR4 material or up to about 150mmof standard FR4 with one connector.

Mechanical Dimensions:

Ordering Information:

Gezhi Photonics Co., Ltd is committed to being a global influential organization in optical network devices area.

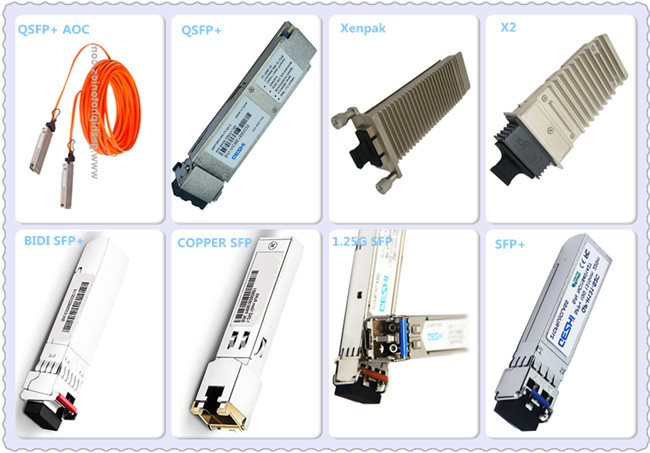

Established in Nov 2011, Gezhi Photonics is a leading worldwide manufacturer and supplier of opticoptical network devices. GEZHI have TWO Parts Products which meet full demand’ customer in Fiber Optics Components. One parts is Active Components (main products include SFP,SFP+,XFP,X2,GBIC transceiver, 10G OEO...) Another parts is Passive Components (mainly products is (CWDM/DWDM,Athermal AWG Module,Optical Switch,Optical Circulator/Isolator, MPO Patchcord...)
