2x2F Optical Switch
GEZHI -FSW-2x2F Optical Switch, which is famous for its high performance, low insertion loss and compact dimension: (L)27.0×(W)12.6×(H)8.2 ±0.2mm. It is an ideal component for OADM,OXC,system monitoring and protection. With compact package, it can be easy to integrate into a high density optical communication system.
Features | Applications |
|
|
Parameters | GZ-FSW-2×2F | |
| Wavelength Range | nm | 1260~1650nm or 850nm 1260~1650 |
| OperatingWavelength | nm | 1310/1550 or 850nm 1310/1490/1550/1625/1650 |
| Insertion Loss | dB | Typ:0.7 Max:1.0 Typ:0.8 Max:1.0 |
| Return Loss | dB | SM≥50 MM≥30 |
| Crosstalk | dB | SM≥55 MM≥35 |
| PDL | dB | ≤0.05 |
| WDL | dB | ≤0.25 |
| TDL | dB | ≤0.25 |
| Repeatability | dB | ≤±0.02 |
| Power supply | v | 3.0 or 5.0 |
| Lifetime | Time | ≥107 |
| Switch Time | ms | ≤8 |
| Transmission Power | mW | ≤500 |
| OperatingTemperature | ℃ | -20~+70 |
| Storage Temperature | ℃ | -40~+85 |
| Dimension | mm | (L)27.0×(W)12.0×(H)8.2 |
Pins
| Type | Pin | Electric Drive | Status sensor | ||||||
| 2×2F | channel | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 |
| Latching | P1-P4,P2-P3 | -- | -- | GND | V+ | Close | Open | Open | Close |
| P1-P3,P2-P4 | V+ | GND | -- | -- | Open | Close | Close | Open | |
| Non-latching | P1-P4,P2-P3 | -- | -- | -- | -- | Close | Open | Open | Close |
| P1-P3,P2-P4 | V+ | -- | -- | GND | Open | Close | Close | Open | |

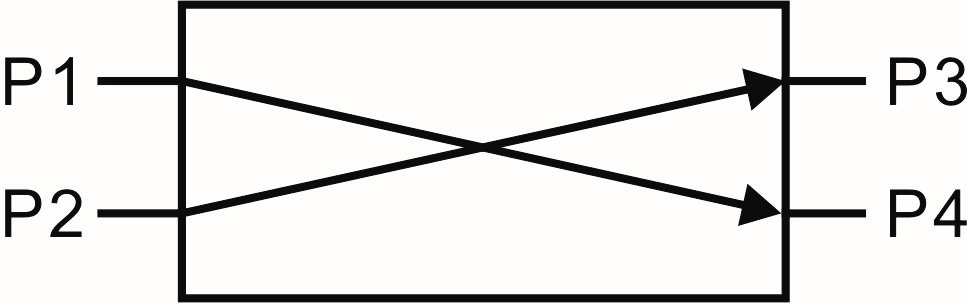

Optical Route
| Status One | Status Two |
 |  |
Electric
| Specifications | Voltage | Current | Resistance |
| 5V latching | 4.5~5.5 | 36~44mA | 125Ω |
| 5V non-latching | 4.5~5.5 | 26~32mA | 175Ω |
| 3V latching | 2.7~3.3 | 54~66mA | 50Ω |
| 3V non-latching | 2.7~3.3 | 39~47mA | 70Ω |
Ordering Information
| Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
S=SM M=MM | 85=850nm 13/15=1310/1550nm X=Others | 3=3V 5=5V | L=Latching N=Non- Latching | 5=50/125 6=62.5/125 9=9/125 X=Others | 25=250um 90=900um 20=2.0mm 30=3.0mm X=Others | 1=1m 2=1.5m X=Others | 0=None FP=FC/PC FA=FC/APC SP=SC/PC SA=SC/APC LP=LC/PC LA=LC/APC X=Others |
|
|
