| Brand Name : | Gezhi |
| Model Number : | GX-H155-ERC |
| Certification : | CE,RoHs,FCC |
| Price : | Get Latest Price |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 60000 Piece/Pieces per month for 10G-SFPP-SR-GEZHI |
| Delivery Time : | 1~4 work days |
10Gbps XFP Optical Transceiver / fiber transceiver 40km Reach LC Connector
GX-H155-ERC
10Gbps XFP Optical Transceiver, 40km Reach
Features:
♦ Supports 10GBE Application at the Data-Rate of 9.953Gbps to 10.3125Gbps
♦ Maximum link length of 40km with SMF
♦ 1550nm cooled EML laser and PIN photodiode
♦ XFP MSA package with duplex LC connector
♦ XFI High Speed Electrical Interface
♦ +5V, +3.3V,+1.8V power supply
♦ Low Power Dissipation 3.5W Maximum
♦ 2-wire interface for management and diagnostic monitor
♦ Compatible with RoHS
♦ Compatible with IEEE 802.3ae 10 Gigabit Ethernet
♦ Compatible with Sonet OC-192/SDH STM-64
Application:
♦ SONET(OC-192)/SDH(STM64)
♦ 10GE Ethernet
♦ 10G Fiber Channel
Description:
Gezhi's 40km XFP GX-H155-ERC transceiver comply with XFP MSA, and can support diverse applications for SDH/Sonet equipment including FEC (9.95Gb/s to 10.7Gb/s),as well as Ethernet LAN(10.325Gb/s) and WAN(9.95Gb/s) applications. The high performance cooled 1550nm cooled EML transmitter and high sensitivity PIN receiver provide superior performance for SONET /SDH and Ethernet applications at up to 40km links. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.

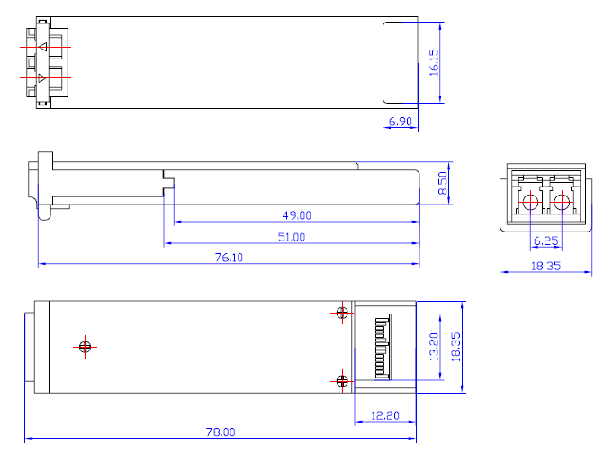

Mechanical Dimensions:
Ordering Information:
| Part Number | Product Description |
| GX-H155-ERC | 1550nm, XFP, 10Gbps, 40km, 0ºC ~ +70ºC |
